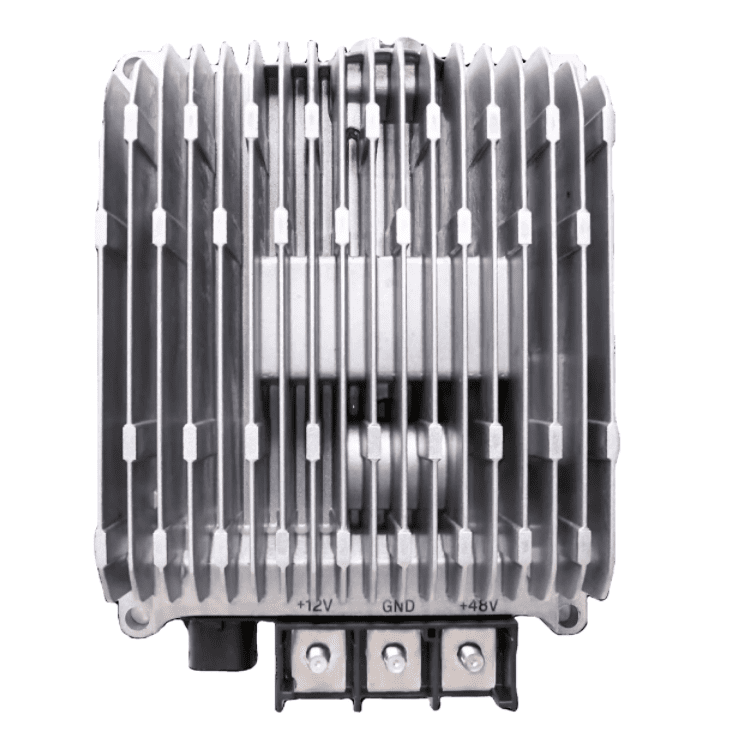

Non-isolated Bidirectional DC DC Converter 48V to 12V 24V Buck Boost Converter for EV Hybrid Truck RV Caravan

48V to 12v bidirectional power converter

Categories: BMS,DC Power Converter & Chargers, DC-DC Modules

Model: B4812-1800W
Type: DC/DC Converter (Buck-Boost-Precharge)
Place of Origin: Guangdong, China

Key Specifications:

Output Current: 130A
Output Type: DC
Efficiency: 93%
Cooling Method: Natural cooling
Voltage Range (BN48): 24V to 36V/48V/54V/60V
Current Control Accuracy: ±2%
Voltage Control Accuracy: ±1%

Communication & Control:

Network Protocol: CAN2.0 (CAN bus)
Electronic Mode: Supports Buck, Boost, and Precharge functions.

Physical Attributes:

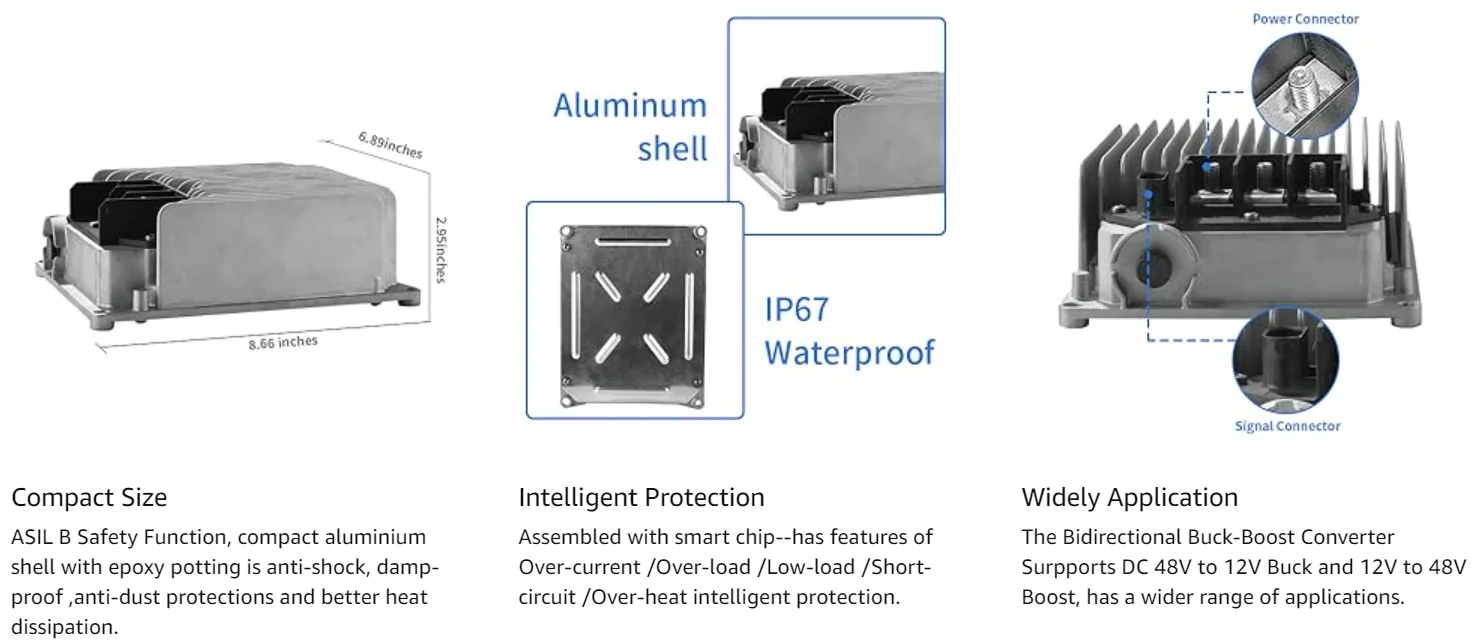

Dimensions: 24 × 18 × 8 cm
Weight: 2.5 kg (3.0 kg packaged)

Environmental Tolerance:

Storage Temperature: -40°C to 120°C
Altitude Range: -1000 to 5000 meters

Application:

Designed for Hybrid Vehicles.

Additional Features:

Customization: Supports software reengineering for tailored solutions.
Packaging: Sold as a single unit.

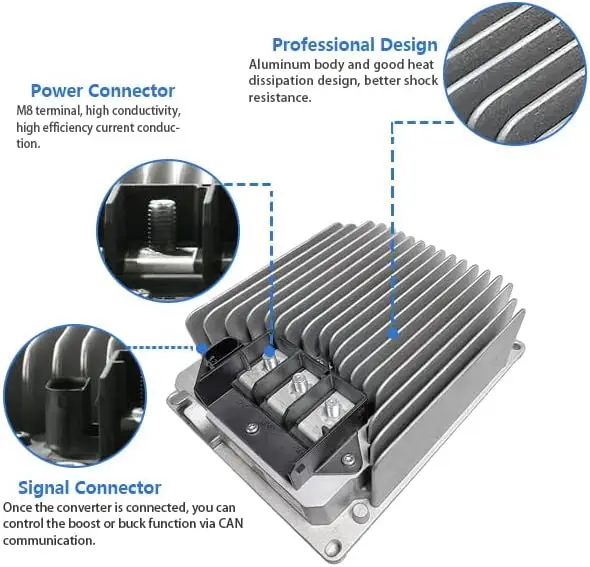

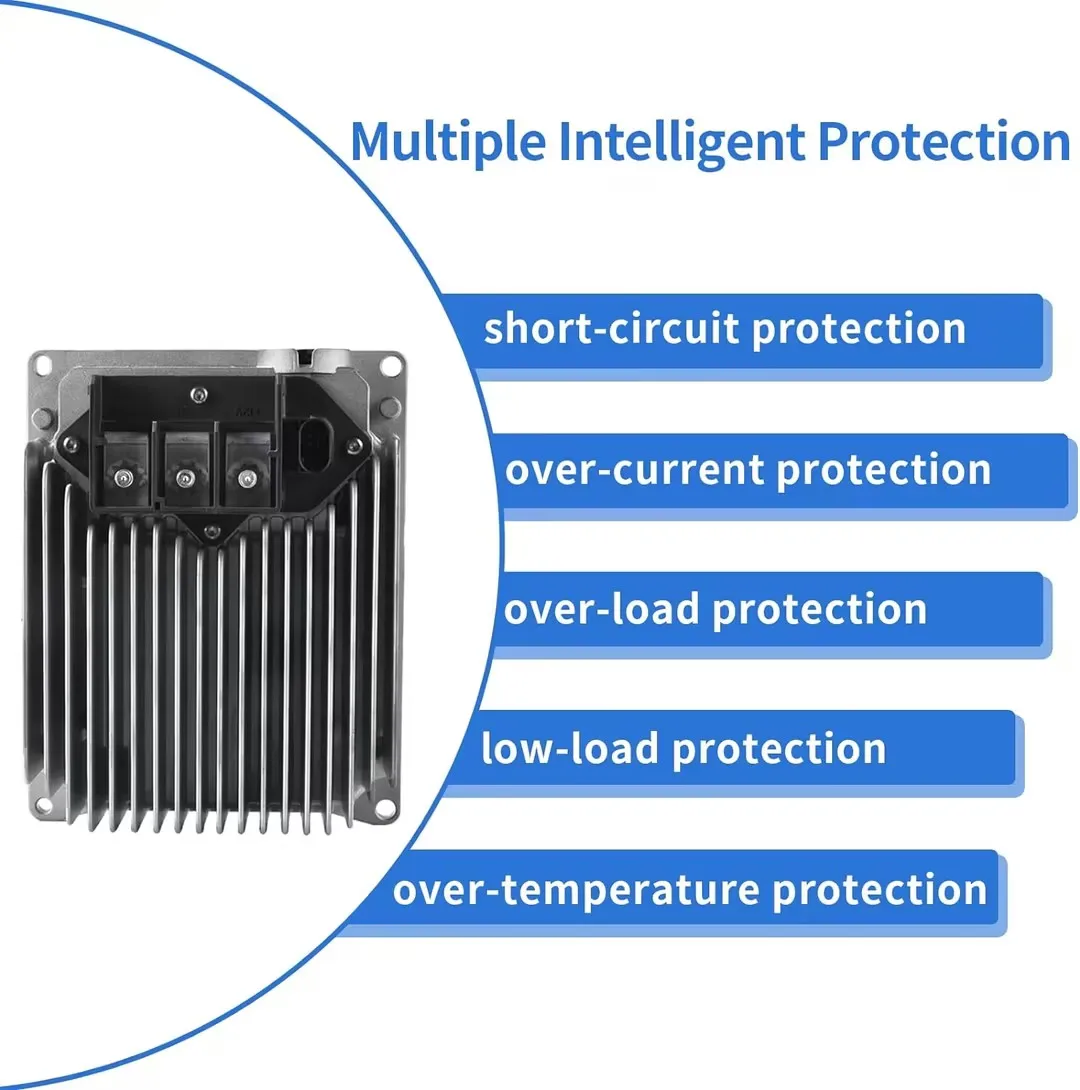

4812 series DCDC is a DC converter specially designed for automotive 48V and 12V products. Wide input and output range, small size, high efficiency, stable output, complete protection, waterproof and shockproof, EMC meets CISPR25 LEVEL 3, ensuring that the vehicle can be used in complex environments. With bidirectional charging and discharging function, the product can set the voltage and current range through CAN communication. All the components meet the requirements of vehicle regulations and ensure that the product have a long lifecycle.
