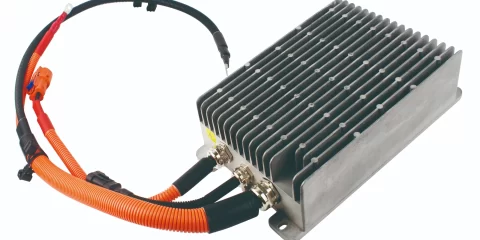

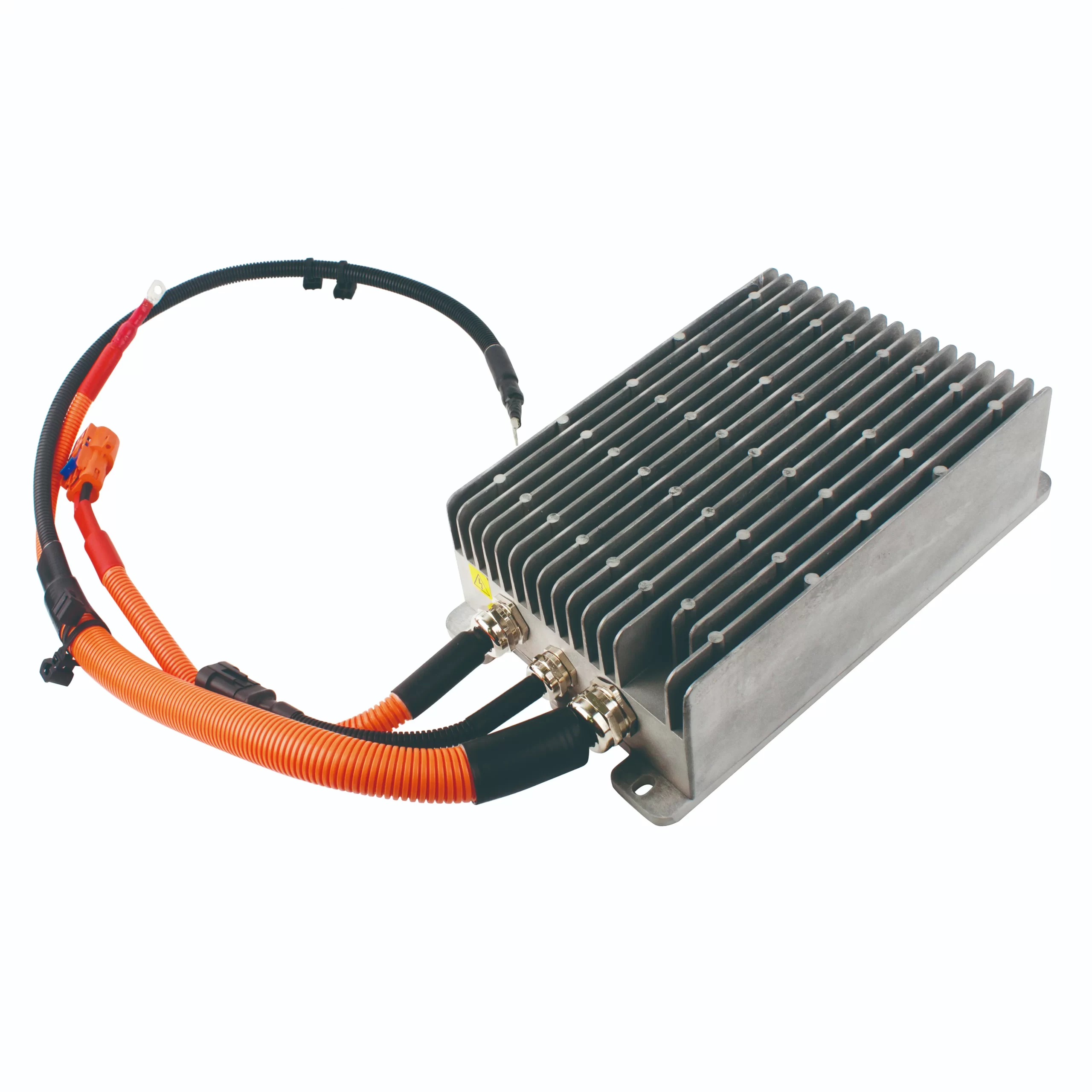

EV Power Supply 110Vdc~185Vdc to 14V 1KW DC DC Converter
DC-DC Power Converter (110V-185V to 14V) for Electric Vehicles: Key Functions & Applications
1. Core Functions
Voltage Step-Down: Converts high-voltage traction battery power (110V-185V) to stable 14V DC output for low-voltage systems.
Energy Efficiency: Typically achieves >92% efficiency ( LLC resonant topology).
| Technical Specification | Value |
|---|---|
| Input Voltage | 110V-185V |
| Output Voltage | 14Vdc |
| Max Output Current | 72A |
| Rated Power | 1KW |
| Maximum Power | 1.2KW |
| Peak Efficiency | >92% |
| Protection Rating | IP67 (Natural Cooling) |
| Communication Interface | CAN2.0 |
| Dimensions (L×W×H) | 276×168×79mm |
| Unit Weight | 3.8KG |
2. Primary Use Cases
| Application | Purpose | Example Components |
| Auxiliary Systems | Powers control units, lighting, sensors, and infotainment | ECU, LED headlights, ADAS cameras |
| Thermal Management | Drives coolant pumps,fans for battery, cabin climate control | PTC heaters, HVAC compressors |
| Safety Devices | Supplies emergency brakes, door locks, and crash sensors | ABS, SRS airbag systems |
Key features:
-
Compact industrial-grade DC/DC converter
-
High-efficiency design (>92%)
-
Rugged IP67 enclosure
-
CAN bus communication enabled
3. Critical Design Notes
Input Range Flexibility: Must tolerate EV battery voltage fluctuations (e.g., 750V during regen braking).
EMC Compliance: Meet CISPR 25 Class 3 for electromagnetic interference suppression.
Thermal Derating: Output current drops by 15% at ambient temperatures >85°C.
Protection Features: Required:
Overcurrent (OCP)
Short-circuit (SCP)
Overvoltage (OVP)
4. Keywords for Technical Documentation
Primary Terms:
`High-voltage to low-voltage DC-DC converter`, `Isolated step-down converter`, `Automotive-grade power supply`
Performance Metrics:
Wide input range (110V-185V)`, `14V/70A output`, `92% peak efficiency`, `EV DC-DC Converter`
Applications:
`EV auxiliary power module`, `Battery management system (BMS)`, `Electric bus low-voltage network`
